泉州联进机械有限公司
QUANZHOU LIANJIN MACHINE CO., LTD
自
动
冲
床
使
用
说
明
Hydraulic Automatic
Rubber Die Cutting Machine Usage
用途：根据刀模裁断出需要的橡胶片样式
特点：1.不漏压！不漏油！零事故！
2.配置安全阀，安全阀一打开马上停止运作。
主要技术参数 Technical Parameters | |
型号 Model | LJ-D100 |
机型Systems | 液压式自动送料 |
外型尺寸Appearance Size: L*W*H(mm) | 850*1120*2030 |
刀模尺寸Knif mold size(mm) | 400*280 |
工作宽度Working Width(mm) | 460 |
总功率Power (KW) | 5 |
重量Weight(kg) | 1000 |

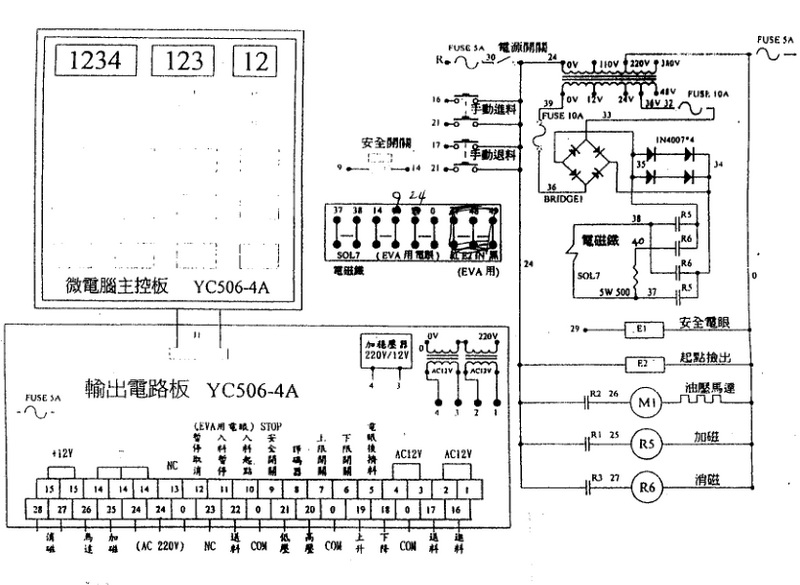

使用说明：
公共设备电力：电压380V,50Hz。
主电源线：2.5平方毫米 三芯线
1. 油箱的油保持干净，以免损坏油路的配件。
2. 加46# 液压油显示油表至80%。液压油需每年更换一次。
3. 先马达启动，按上升下降5-6次，再按自动。
4. 按照鞋模高度调整气缸高低开关和油马达的送料时间长短。
5. 调定件数，按自动开关。
6. 如发现胶片有时长时短
A.要检查译码器的传动齿轮是否有松动，齿轮间隙是否过大。
B.检查压辊两端弹簧是否过松。
C.检查传动链条是否松动。
D.进料时胶片一定要通过每一条过桥辊。
E.调整进料压力阀和节流阀。
F.如发现有阻料现象，按照上面6中的D解决。并送料一定要平整进入。
7.如发现料有切不断
A.查看刀模是否平整。
B.调整延长时间。
C.调整压力阀。
8.油压之最高使用压力为100kg/cm ,一般常用50-70kg.
9.活塞和缸套应保持润滑油脂，一个星期注油一次（有气泡时注油）
10.在正常使用过程中故障小，一般多为保险丝烧掉，操作面板损坏，电磁线圈损坏，电眼（传感器）沾粉。
Purpose：According to the knife mold cut out the required rubber sheet style.
Specialty: 1. No leakage in oil or pressure, safe.
2. It will stop working once the safety valve is open.
主要技术参数 Technical Parameters | |
型号 Model | LJ-D100 |
机型Systems | 液压式自动送料 |
外型尺寸Appearance Size: L*W*H(mm) | 850*1120*2030 |
刀模尺寸Knif mold size(mm) | 400*280 |
工作宽度Working Width(mm) | 460 |
总功率Power (KW) | 5 |
重量Weight(kg) | 1000 |
INSTRUCTIONS:
Public equipment：Power: 380V,50Hz.
Host power line: 2.5mm² three -core
1. Keep the oil in tank clean, avoid damaging its accessories.
2. Add the 46# hydraulic oil until oil gauge reach to 80%. The hydraulic oil needs to be replaced once a year.
3. Start MORTOR, press UP and DOWN buttons 5-6 times, and then press the AUTO button.
4. Adjust the cylinder HIGH-LOW button to set the cutting speed and time according to the height of shoe moulds.
5. Set a specific figure for number of units, and then press the AUTO button.
6. If found the rubber cut being long or short unequally.
A. Check whether the transmitting gear of decoder work nomally, whether gear space is too big.
B. Check if the springs at two sides of roller are too loose.
C. Check whether the transmission chain too loose.
D. When feeding, the rubber must be through every gap bridge rollers.
E. Adjust feeding pressure valve & throttling valve.
F. If found any stop-feeding phenomenon, solve it according above 6(D). Feeding must be put into in the same level.
7. If found the rubber could not be cut.
A. Check whether the cutting die is flat.
B. Adjust to elongate the cutting time.
C. adjust pressure valve.
8. The highest pressure in using is 100kg/cm about hydraulic oil, the nomal one being 50-70kg.
9. Piston & cylinder linner must be keep lubrication by adding oil once a week (when bubble appears)
10. Little fault under normal use, it is ordinary because fuse burned, panel damaged electromagnetic coil damaged, or powder attaches to transducer.
