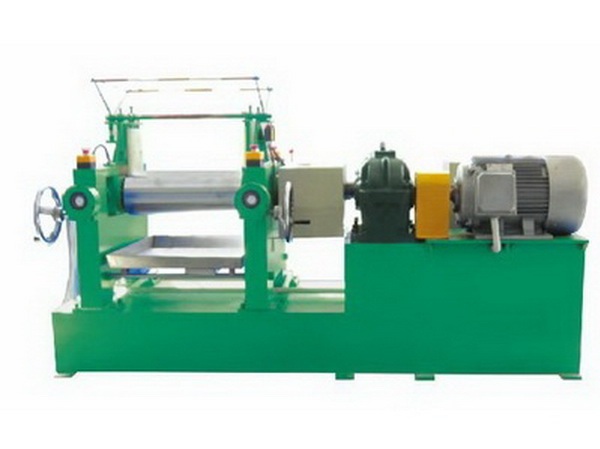

小炼胶机
用途:本机耗电量低，用于打样、出片、补数。
Purpose:This rubber mixing mill has low operating cost in electricity . It is used to make out of
rubber slice and samples, comp lementing number and adjust the colour of rubber sheets.
主要技术参数 Technical Parameters
| 机型Systems | Ф9 |
| 外型尺寸Appearance sizelxwxh | 2600X1330X960 |
| 辊径X长度Roll prive x length | 230x630 |
| 主电机Main motor | 18.5KW6PAC |
| 前辊转速The former wire-speed poller mlmin | 21.5 |
| 前辊转速Former roller specd rpm | 17.2 |
| 前后辊速比Before and after the roller speed ratio | 1:1.1 |
| 减速机速比Reducer speed ratio | 45 |
| 机械重量Machinery weight | 4000kg |
