泉州联进机械有限公司
QUANZHOU LIANJIN MACHINE CO., LTD
切
条
机
使
用
说
明

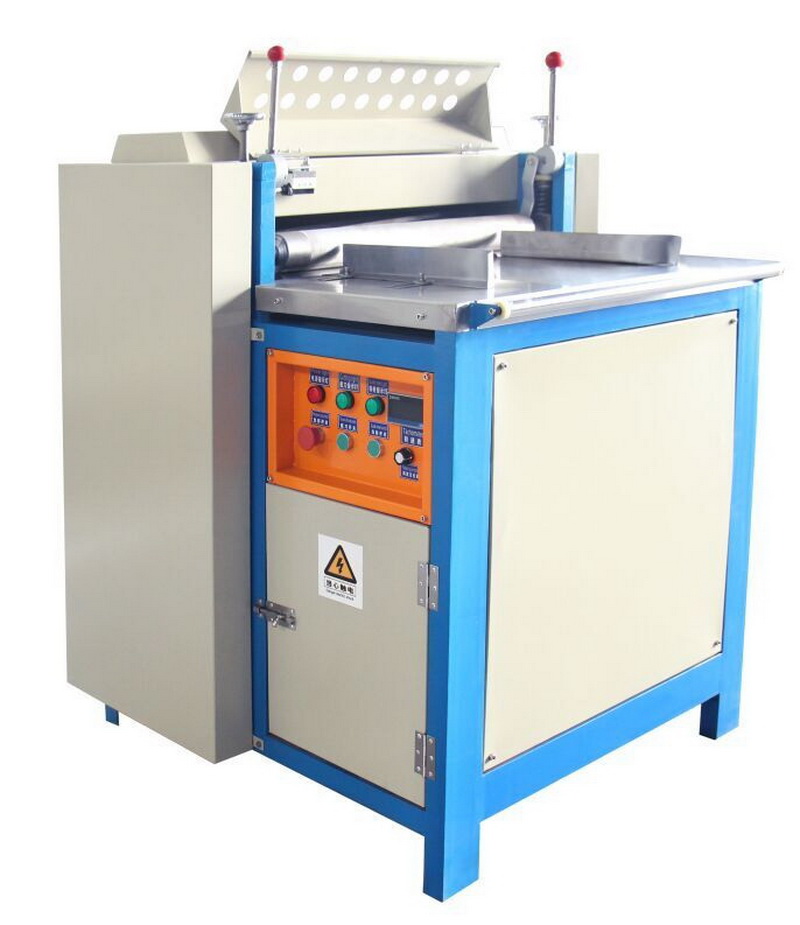

Rubber Strip Cutting Machine Usage
用途：用于橡胶切条、切纸等
特点： 1.装有防护装置在使用时安全快捷。
2.翻滚切割，三个刀片设计，切料速度快，效率高。
3.送料速度可调，裁断宽度可调。
主要技术参数 Technical Parameters | |
型号 Model | LJ-CA08 |
机型Systems | 翻滚切 |
外型尺寸Appearance Size: L*W*H(mm) | 1200*1000*1200 |
工作宽度Working Width(mm) | 600 |
功率Power (KW) | 2.25 |
重量Weight(kg) | 350 |
使用说明
1. 操作时不要双层料同时切，以免烧坏电机，发现送料滚筒卷料时，要及时关机清理，同时如有杂料在刀口工作部位要及时清理干净，清理时务必断开电源来源。
2. 原料不能有铁，石头等杂物，如发现要清理干净，以免损伤刀片。
3. 发现电机有异声，要停机检查，链条皮带松动要及时调整，螺丝松动要及时紧固。
4. 机台工作时，手一定不要伸进里面，如有问题，一定要停机解决。
5. 手摇加油泵一个星期加油一次，每次压两下；脚踏板要轻踩轻放，以免两头轴心变位。
6. 如时间长，发现料切不断①调整刀口间隙②修整刀口，检查刀口是否有损坏，如有损坏要及时修整。
7. 送料滚筒如卡料，不能启动①检查电控箱内保险丝是否烧坏，如烧坏，更换时必需按原来型号更换，不要随意加大规格。②检查调整旋转失灵，如有不灵及时更换。
8. 两端弹簧调整不能压得太紧，以免滚卷料，新机台用少量粉撒在卷筒上，以免卷料。
Size: L*W*H (mm) 1200*1000*1200
Purpose: This machine is used for cutting the rubber, paper etc.
Advantage: 1.Equiped with safety cover to secure safety on working.
2. Revolving blade cuts rubber in high speed and efficiency, with three blade edges.
3. Adjusting with the width of rubber strip through the speed button on the side.
主要技术参数 Technical Parameters | |
型号 Model | LJ-CA08 |
机型Systems | 翻滚切 |
外型尺寸Appearance Size: L*W*H(mm) | 1200*1000*1200 |
工作宽度Working Width(mm) | 600 |
功率Power (KW) | 2.25 |
重量Weight(kg) | 350 |
INSTRUCTIONS:
1. When operating, do not cut rubber in double-deck at one time, which will cause the MOTOR to be too hot and broken. If the Material-sending Roller can not run smoothly. Please shutdown at once; meanwhile, if there are odds and ends at knife edge, please clean up in time .Do stop the power before cleaning.
2. No iron or stone in the material; if any, take them, away at once, so as not to make the blade damaged.
3. Any unusual voice, stop and check. Adjust chains and screws if they are loose.
4. Do stop the machine when there is problem. Do not put hands in when the machine is still working.
5. Add oil to cycloidal needle wheel on time (usually once per three months).
6. After being operated for long time and the machine fails to cut off material, customer should adjust the knife and check whether the blade is damaged and need repairing.
7. In case the material sending roller can not send the material smoothly, you should firstly check and adjust rotary switch; if it can not work effectively, replace a new one in time.
8. Do not install the spring at each side too heavily or the material will not be sent smoothly. New machine please add proper amount of powder to the Rooller to avoid material rolling and jammed.
